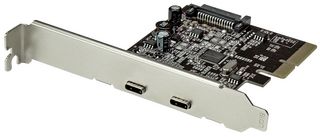

PEXUSB312C2

Upgrade your PC for the next generation of USB; SuperSpeed Plus transfer rates up to 10Gb/s. This card provides two high speed USB-C ports for connecting modern devices and peripherals.

• Optional SATA power connector for high powered USB devices (up to 900mA per port for USB 3.1 devices, 500mA for USB 2.0)
• UASP compliant for improved performance
• Backwards compatible with USB 3.0 and 2.0
• Supplied with low profile bracket
• PCI Express (x4) Interface
• Supports Win 7/8/10, Linux 3.5-4.11.xx (LTS versions only)
• 2 Year manufacturer warranty

Vsebina

PCI-Express card, LP bracket and user guide

Opombe

Note: USB-C port is data only, and does not support DP Alt Mode or USB Power Delivery. Available bandwidth is shared between both ports. Maximum throughput is limited by the bus interface; if used with PCI-Ex Gen 2.0 PC, the max is 5 Gb/s. If used with PCI-Ex Gen 3.0 PC the max is 10Gb/s.
