819119-SF.

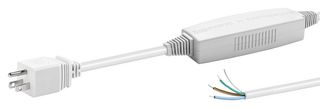

Mains Power Cord, Shielded, NEMA 5-15P to Free End, 2 m, 10 A, 250 VAC, White, IF13 Series
Obvestite me, ko bo izdelek spet na zalogi.
| Količina | |
|---|---|
| 1+ | € 39,390 |
| 5+ | € 36,620 |
| 10+ | € 33,850 |
| 25+ | € 32,900 |
| 50+ | € 31,940 |
| 100+ | € 30,990 |
INFORMACIJE O IZDELKU
Pregled izdelka
The IF13 power cords with integrated filter provide the easiest way to integrate an EMC filter into a given design with a power cord. The approach to incorparate the filter in an external cable can help to pass compliance testing at the end of the design phase. The performance of the filter is enhanced through the ferrite cable and shielding. With different versions of input and output connections the cord can be easily implemented. Complying with RoHS and REACH the power cords fulfill worldwide environmental regulations.
- High performance in high frequency range
- Retrofit for cord connected devices
- Shielding and ferrite cable
- Rated current up to 10A
Področja uporabe
Data / Computing, Industrial, Laboratory, Medical, Security
Tehnični podatki
NEMA 5-15P to Free End
Free End
10A
White
6.6ft
NEMA 5-15P
2m
250VAC
IF13 Series
No SVHC (17-Jan-2022)
Tehnični dokumenti (1)
Zakonodaja in okoljevarstvo
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaChina
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
RoHS
RoHS
Potrdilo o skladnosti izdelka
