BK4013B

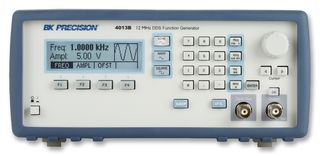

Model BK4013B is versatile DDS (direct digital synthesis) sweep function generators with high signal precision and stability. This instruments generate sine and square waveforms up to 7 MHz or 12 MHz, including triangle/ramp waveforms up to 1 MHz. Both models provide variable output voltages from 0 to 10 Vpp into 50 ohms or up to 20 Vpp into open circuit. A continuously variable DC offset allows the output to be injected directly into circuits at the correct bias level.

• Sine and square waveforms up to 12 MHz
• Bright easy-to-read display
• Linear and logarithmic sweep
• Variable DC offset
• Adjustable duty cycle
• Store and recall up to 9 instrument settings
• Output On/Off button
• Overvoltage, overcurrent, and short circuit protection on main output

Področja uporabe

Test & Measurement, Signal Processing, Maintenance & Repair

Vsebina

Manual on CD, power cord, certificate of calibration

Opombe

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
