ECP225PS48

Name: AC/DC Open Frame Power Supply (PSU), ITE & Medical, 1 Output, 225W @ 7CFM, 150 W
Brand: XP POWER
SKU: 2319733
Availability: OutOfStock

AC/DC Open Frame Power Supply (PSU), ITE & Medical, 1 Output, 225W @ 7CFM, 150 W

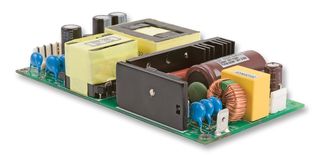

Slika je zgolj simbolična. Oglejte si opis izdelka.

ProizvajalecXP POWER

Proizvajalčeva št. delaECP225PS48

Številka naročila2319733

Nabor izdelkovECP225 Series

Oglejte si vse tehnične dokumente

Na voljo za naročilo

Standardni dobavni rok proizvajalca: Število tednov dobavnega roka: 18

Količina
1+	€ 143,450

Cena za:Each

Najmanj: 1

Več: 1

€ 143,45 (brez DDV)

Dodaj št. dela /opombo k postavki

Opomba k postavki

Vključeni so v vašo potrditev naročila, izstavljeni račun in odpremnico le za to naročilo.

Št. vašega dela

Ta številka bo vključena v potrdilo naročila, izstavljeni račun, odpremnico, e-poštno sporočilo s spletno potrditvijo in nalepko izdelka.

INFORMACIJE O IZDELKU

ProizvajalecXP POWER

Proizvajalčeva št. delaECP225PS48

Številka naročila2319733

Nabor izdelkovECP225 Series

Power Supply ApplicationsITE & Medical

Output Power Max225W

No. of Outputs1 Output

Power Rating (Forced Cooling)225W @ 7CFM

Power Rating (Convection Cooling)150W

Input Voltage VAC85V AC to 264V AC

Power Supply Output TypeAdjustable, Fixed

Output Voltage - Output 148VDC

Output Current - Output 13.1A

Output Voltage - Output 2-

Output Current - Output 2-

Output Voltage - Output 3-

Input Voltage AC Min85V

Input Voltage AC Max264V

Output Current - Output 3-

Output Voltage - Output 4-

Output Current - Output 4-

Product RangeECP225 Series

SVHCNo SVHC (15-Jan-2018)

Pregled izdelka

The ECP225 is a single output 225W open frame AC/DC Power Supply designed to minimise the no load power consumption and maximise efficiency in order to facilitate equipment design to meet the latest environmental legislation. Approved for medical and ITE applications, this range of single output AC/DC power supplies are packaged in an ultra low profile 1" height with a foot print of just 2.5" by 3". The ECP225PS12 provides force cooled leading to very high power densities of 18W/in³ or 12W/in³ respectively. A 12V, 300mA fan supply is included in the design. The power supply contains two fuses and low leakage currents as required by medical applications and is safety approved to operate in a 70°C ambient.

225W Forced Cooled (10CFM)
150W Convection Cooled
Low 1" Profile with 2.5" x 5" Footprint
High Efficiency, up to 95%
Medical & ITE Approvals
Built-In Fan Supply
Less Than 0.5W No Load Power Supply

Področja uporabe

Power Management, Industrial, Medical

Tehnični podatki

Power Supply Applications

ITE & Medical

No. of Outputs

1 Output

Power Rating (Convection Cooling)

150W

Power Supply Output Type

Adjustable, Fixed

Output Current - Output 1

3.1A

Output Current - Output 2

Input Voltage AC Min

85V

Output Current - Output 3

Output Current - Output 4

SVHC

No SVHC (15-Jan-2018)

Output Power Max

225W

Power Rating (Forced Cooling)

225W @ 7CFM

Input Voltage VAC

85V AC to 264V AC

Output Voltage - Output 1

48VDC

Output Voltage - Output 2

Output Voltage - Output 3

Input Voltage AC Max

264V

Output Voltage - Output 4

Product Range

ECP225 Series

Tehnični dokumenti (3)

Certificate of Conformity EN

Technical Notes & Articles EN

CAD Multiple Formats EN

Alternative za ECP225PS48

1 najden izdelek

Zakonodaja in okoljevarstvo

Drzava porekla
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaTaiwan
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.

Tarifna številka:85044083

US ECCN:EAR99

EU ECCN:NLR

Skladnost z direktivo RoHS:Da

RoHS

Skladno z direktivo RoHS glede ftalatov:Da

RoHS

SVHC:No SVHC (15-Jan-2018)

Prenesi potrdilo o skladnosti z izdelkom

Potrdilo o skladnosti izdelka

Teza (kg):.23
