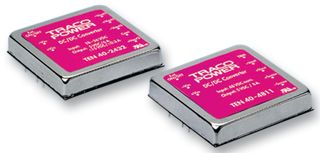

TEN 40-1212

The TEN 40-1212 is a high performance 40W DC-DC Converter Module featuring wide 2:1 input voltage range of 9 to 18VDC in a compact low profile case with industry-standard footprint. A very high efficiency allows an operating temperature range of -40 to 75°C. Built-in filters for both input and output minimize the need for external filtering. Further standard features include remote 12VDC/3.3A output, remote ON/OFF, output voltage trimming, overvoltage protection and under-voltage lockout and short-circuit protection. This device is suitable for use in battery operated equipment and many applications where isolated, tightly regulated voltages are required and space is limited on the PCB.

• Shielded metal case with insulated base plate
• 86% Typical efficiency
• 12VDC Nominal input voltage

Področja uporabe

Communications & Networking, Consumer Electronics, Power Management
