G7F01093C

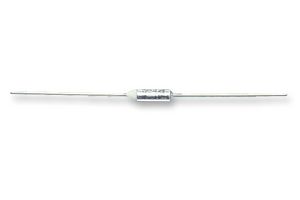

The G7 MICROTEMP series from Thermodisc are compact size, global standard thermal cut-offs. MICROTEMP thermal fuses offer an accurate, reliable solution for upper limit temperature protection against overheating. These thermal cut-offs interrupt an electrical circuit when operating temperatures exceed rated temperature of thermal fuse. The G7 series MICROTEMP thermal cut-offs are designed to satisfy applications requiring miniaturized components. They do not need maximum current interrupt capability and these are just 2/3 size of G4 and G5 thermal cut-offs. G7 MICROTEMP series are capable of meeting requirements of transformers, motors, battery packs and electronic circuit applications.

• Current interrupt capacity up to 5A at 250VAC
• Functioning temperature (Tf) range from 77°C to 205°C
• Available in cut, formed or terminated leads
• Mounted and potted options available
• UL/CSA, VDE, CCC, METI, BEAB approved
• One shot operation cuts off electrical power
• Low resistance

Področja uporabe

Industrial, Safety, Portable Devices, Consumer Electronics
