9400

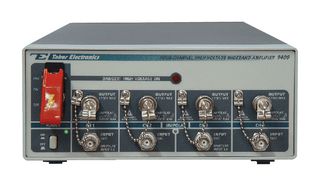

RF Amplifier, 4 Channel, 0 Hz to 500 KHz, Front panel BNC, 100 VAC to 230 VAC, 120W, 3 Year Warranty
Slika je zgolj simbolična. Oglejte si opis izdelka.
Ni več na zalogi
INFORMACIJE O IZDELKU
ProizvajalecTABOR
Proizvajalčeva št. dela9400
Številka naročila4218631
tehnični podatkovni list
Test Frequency Range0Hz to 500kHz
Gain dB - Typical-
RF Connector TypeBNC
Product Range-
SVHCNo SVHC (23-Jan-2024)
Pregled izdelka
9400 is a 400Vp-p four channel signal amplifier. It is designed as a general purpose, wide band and high voltage amplifier however, with specific applications in mind. It has four channels built in a small case size to save space and cost but without compromising bandwidth and signal integrity.
- Four independent channels
- Output current to 50mA
- Full power bandwidth from DC to <gt/>500KHz
- Slew rate to 400V/µs
- Monitor outputs for each channel
- Precise signal amplification for multiple applications
- Compatible with any of the tabor waveform generators
- Special unipolar mode for MEMS engine drivers
Opombe
In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
Tehnični podatki
Test Frequency Range
0Hz to 500kHz
RF Connector Type
BNC
SVHC
No SVHC (23-Jan-2024)
Gain dB - Typical
-
Product Range
-
Tehnični dokumenti (1)
Zakonodaja in okoljevarstvo
Drzava porekla
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaIsrael
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaIsrael
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
Tarifna številka:85432000
US ECCN:3A992.a
EU ECCN:NLR
Skladnost z direktivo RoHS:Da
RoHS
Skladno z direktivo RoHS glede ftalatov:Bo naknadno sporočeno
SVHC:No SVHC (23-Jan-2024)
Prenesi potrdilo o skladnosti z izdelkom
Potrdilo o skladnosti izdelka
Teza (kg):6.5
