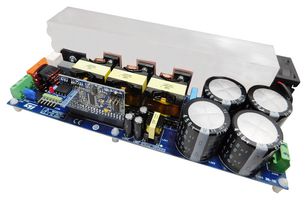

STEVAL-IPFC01V1

3KW interleaved PFC kit based on the STNRGPF01 digital controller and includes a separate power board (STEVAL-IPFC01P1), control board (STEVAL-IPFC01C1) and adapter board (STEVAL-IPFC01A1). The STNRGPF01 is a digital configurable ASIC developed by STMicroelectronics which can drive up to three channels in an interleaved PFC for industrial applications.

• 90 to 265VAC input voltage range
• 47 to 63Hz line frequency range, 111KHz switching frequency
• 400V output voltage
• Mixed-signal average current mode control, CCM fixed frequency operation
• Cycle by cycle regulation (analogue current control loop)
• Input voltage and load feed-forwards
• Phase shedding, burst-mode operation, overvoltage protection
• Thermal protection, status indicator LEDs, inrush current limiter function
• Cooling function
