BD94130EFV-ME2
LED Driver, DC / DC, Constant Current, 20 MHz, AEC-Q100, 0.08A, 24 Output, HTSSOP-B54-EP

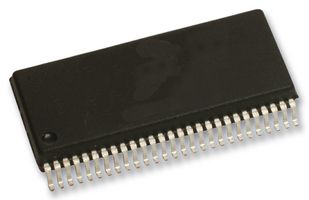

Slika je zgolj simbolična. Oglejte si opis izdelka.
ProizvajalecROHM
Proizvajalčeva št. delaBD94130EFV-ME2
Številka naročila4178067
tehnični podatkovni list
87 Na Zalogi
Potrebujete več?
Dostava v 1–3 delovnih dneh
Standardno pošiljanje za naročila, oddana pred 17. uro
| Količina | |
|---|---|
| 1+ | € 12,460 |
| 10+ | € 9,520 |
| 25+ | € 8,780 |
| 50+ | € 8,090 |
Cena za:Each (Supplied on Cut Tape)
Najmanj: 1
Več: 1
€ 12,46 (brez DDV)
Dodaj št. dela /opombo k postavki
Vključeni so v vašo potrditev naročila, izstavljeni račun in odpremnico le za to naročilo.
Ta številka bo vključena v potrdilo naročila, izstavljeni račun, odpremnico, e-poštno sporočilo s spletno potrditvijo in nalepko izdelka.
INFORMACIJE O IZDELKU
ProizvajalecROHM
Proizvajalčeva št. delaBD94130EFV-ME2
Številka naročila4178067
tehnični podatkovni list
TopologyConstant Current
LED Driver Type-
Input Voltage Min3V
Input Voltage Max5.5V
Output Voltage Max20V
Output Current Max80mA
Switching Frequency Typ20MHz
IC MountingSurface Mount
IC Case / PackageHTSSOP-B54-EP
No. of Pins54Pins
Operating Temperature Min-40°C
Operating Temperature Max125°C
Product Range-
QualificationAEC-Q100
SVHCTo Be Advised
Automotive Qualification StandardAEC-Q100
Device TopologyConstant Current
Driver Case StyleHTSSOP-B54-EP
No. of Outputs24Outputs
Switching Frequency20MHz
Pregled izdelka
BD94130EFV-ME2 is an automotive LED driver series embedded 24- channel constant current driver with 12bit PWM dimming and max 8-line switch controllers. This device can set LED constant current value by setting external ISET resistor. Communication with μ-controller via SPI is feasible. Application includes cluster, centre infotainment display, other automotive backlights.
- Functional safety supportive automotive products
- Integrated 4/6/8-line switch controllers, SPI interface (cascade connection feasible)
- 12bit PWM dimming, LED constant current setting by ISET resistor
- Phase shift function, 6bit dot correct (50% to 100%)
- LED open detection and LED short detection, adjacent LEDCH short detection
- PGATE short protection, VINSW over voltage protection
- Slew rate control for PMOS gate driver, abnormality output FAILB pin
- Power supply voltage range from 3.0 to 5.5V, LEDCHn pin voltage (n = 1 to 24) is 20V
- Maximum LED output current is 80mA
- HTSSOP-B54 package, operating temperature range from -40°C to +125°C
Tehnični podatki
Topology
Constant Current
Input Voltage Min
3V
Output Voltage Max
20V
Switching Frequency Typ
20MHz
IC Case / Package
HTSSOP-B54-EP
Operating Temperature Min
-40°C
Product Range
-
SVHC
To Be Advised
Device Topology
Constant Current
No. of Outputs
24Outputs
LED Driver Type
-
Input Voltage Max
5.5V
Output Current Max
80mA
IC Mounting
Surface Mount
No. of Pins
54Pins
Operating Temperature Max
125°C
Qualification
AEC-Q100
Automotive Qualification Standard
AEC-Q100
Driver Case Style
HTSSOP-B54-EP
Switching Frequency
20MHz
