RT-ZC05B
Current Probe, BNC, Current Clamp, 500 A, R&S RTM3000/RTA4000, RTE1000, RTO2000 Oscilloscopes
Potrebujete več?
| Količina | |
|---|---|
| 1+ | € 7.260,000 |
INFORMACIJE O IZDELKU
Pregled izdelka

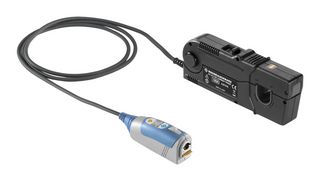

RT-ZC05B is an AC/DC current probe. It allows the user to make current measurements from DC to 2MHz. By clamping on the conductor to be measured, the current waveform is captured easily without interrupting the electric circuit. Since the probe is equipped with the Rohde & Schwarz probe interface, it can be connected to any Rohde & Schwarz base unit that is compatible with this interface. When connected to the front panel of a Rohde & Schwarz oscilloscope, the probe is controlled using the software of the oscilloscope.
- Highly accurate current detection
- Easy current measurement without interrupting the electric circuit
- Large diameter allows high-current measurements
- Easy protection function to avoid self-heating during excessive input
- Unique thin film hall effect element
Vsebina
AC/DC current probe, User manual, Carrying case, R&S RT-Zxx data sheet, Calibration certificate, Documentation of calibrated values.
Tehnični podatki
BNC
500A
R&S RTM3000/RTA4000, RTE1000, RTO2000 Oscilloscopes
To Be Advised
Current Clamp
-
-
Tehnični dokumenti (2)
Zakonodaja in okoljevarstvo
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaJapan
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
RoHS
RoHS
Potrdilo o skladnosti izdelka
