R113182000
RF / Coaxial Connector, MCX Coaxial, Right Angle Plug, Crimp, 50 ohm, RG188, RG316, Brass
1000 Izdelek na zalogi lahko rezervirate že zdaj.
| Količina | |
|---|---|
| 1+ | € 10,390 |
| 10+ | € 8,490 |
| 100+ | € 8,080 |
| 250+ | € 7,700 |
| 500+ | € 7,550 |
| 1000+ | € 7,390 |
INFORMACIJE O IZDELKU
Pregled izdelka

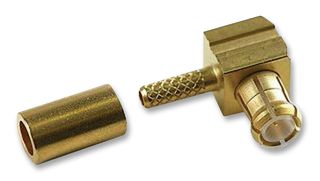

The R113182000 is a right angle MCX Plug with gold over nickel plated brass center contact, gold over nickel plated beryllium copper outer contact, gold over nickel plated brass body for 2.6/50 S cable. This MCX series plug has PTFE insulation, cable mounting and crimp termination. The MCX series connector utilizes the SMB series electrical line and features a particularly simple, compact and robust interface. The MCX series is 30% smaller than the SMB. The MCX series connector helps to miniaturize equipment. It optimizes PCB layouts with its range of models for PCBs including surface mount and press-fit receptacles.
- Subminiature coaxial connector
- Push-pull snap-on mating
- Complies with specification CECC 22220
- -55 to 155°C Temperature range
Področja uporabe
Aerospace, Defence, Military, Wireless
Tehnični podatki
MCX Coaxial
Crimp
RG188, RG316
Gold Plated Contacts
Cable Mount
Lead (27-Jun-2024)
Right Angle Plug
50ohm
Brass
6GHz
-
Tehnični dokumenti (2)
Alternative za R113182000
Št. najdenih izdelkov 3
Povezani izdelki
Št. najdenih izdelkov 2
Zakonodaja in okoljevarstvo
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaChina
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
RoHS
RoHS
Potrdilo o skladnosti izdelka
