Potrebujete več?
Količina | |
---|---|
1+ | € 3,130 |
10+ | € 2,120 |
100+ | € 1,490 |
500+ | € 1,240 |
1000+ | € 1,130 |
5000+ | € 0,998 |
INFORMACIJE O IZDELKU
Pregled izdelka

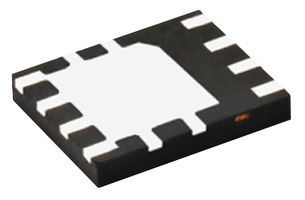

The FDMS86500L is a 60V N-channel PowerTrench® MOSFET has been specially tailored to minimize the on-state resistance and to maintain low gate charge for superior switching performance. The latest medium voltage power MOSFET is optimized power switches combining small gate charge (QG), small reverse recovery charge (Qrr) and soft reverse recovery body diode, which contributes fast switching for synchronous rectification in AC/DC power supplies. It employs shielded-gate structure that provides charge balance. By utilizing this advanced technology, the FOM (figure of merit (QGxRDS(ON))) of these devices is 66% lower than that of previous generation. Soft body diode performance of new PowerTrench® MOSFET is able to eliminate snubber circuit or replace higher voltage rating - MOSFET need circuit because it can minimize the undesirable voltage spikes in synchronous rectification. This product is general usage and suitable for many different applications.
- 100% UIL tested
- Advance package and silicon combination for low RDS (ON) and high efficiency
Opozorila
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Tehnični podatki
N Channel
80A
Power 56
10V
104W
150°C
-
Lead (27-Jun-2024)
60V
0.0025ohm
Surface Mount
1.8V
8Pins
-
MSL 1 - Unlimited
Tehnični dokumenti (2)
Alternative za FDMS86500L
1 najden izdelek
Povezani izdelki
1 najden izdelek
Zakonodaja in okoljevarstvo
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaPhilippines
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
RoHS
RoHS
Potrdilo o skladnosti izdelka
