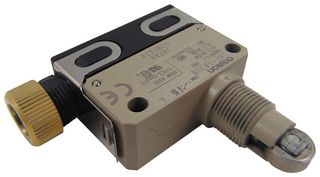

D4E-1A20N

The D4E-1A20N is a slim and compact small Sealed Switch with a roller plunger actuator and screw terminals without a cable. The flat springs with an improved lever ratio of the built-in switch ensure smooth snap action and long life expectancy. The protection cover protects the built-in switch from dust and oil. Plunger incorporates a tough seal cap that lasts for a long time. The one touch connector eliminates need for tedious wiring operations and reduces downtime for wiring and maintenance (models with standard, easy-to-use screw terminals are also available). The minute load model with gold cladding is optimal for electronic control.

• 100MΩ at 500VDC Minimum insulation resistance
• 15mΩ Maximum contact resistance
• IP67 Protection rating
• Approved by UL

Področja uporabe

Industrial
