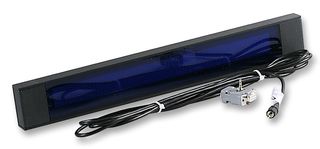

EGU128X8T-K612C5

The EGU128X8T-K612C5 is a Dot Graphic VFD Module includes the VFD glass, VF drivers and microcontroller with refresh RAM, character generation, interface logic and patented transformerless DC/DC converter. The RS232 serial interface accepts 9600 or 19200baud rates with optional parity bit. The module features a low profile design with numerous custom options available including special fonts and commands. Modules can be connected to a multi drop address system.

• Blue display in a black enclosure
• 21 Characters 25mm high
• Up to 9 metres viewing distance
• RS232 3.5mm stereo jack plug interface
• 128 x 8 high brightness dot graphic display
• Large 5 x 7 ASCII and European font
• RS232 asynchronous serial interface
• 31 selectable multi drop addresses
• Transformerless PSU (patent pending)
• Low profile construction

Področja uporabe

Medical, Imaging, Video & Vision
