NLT8FX-BAG
Speaker / Loudspeaker Audio Connector, speakON STX, 8 Contact, Jack, Cable Mount

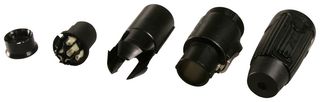

Slika je zgolj simbolična. Oglejte si opis izdelka.
ProizvajalecNEUTRIK
Proizvajalčeva št. delaNLT8FX-BAG
Številka naročila9991964
Nabor izdelkovspeakON STX
Znano tudi kotGTIN UPC EAN: 7613187003912
Umaknjeno iz proizvodnje
INFORMACIJE O IZDELKU
ProizvajalecNEUTRIK
Proizvajalčeva št. delaNLT8FX-BAG
Številka naročila9991964
Nabor izdelkovspeakON STX
Znano tudi kotGTIN UPC EAN: 7613187003912
Product RangespeakON STX
No. of Contacts8 Contact
GenderJack
Connector MountingCable Mount
Contact PlatingSilver Plated Contacts
Connector Body MaterialMetal Body
SVHCNo SVHC (17-Jan-2022)
Pregled izdelka
The NLT8FX-BAG from Neutrik is an 8 pole speakON female cable connector with black chrome metal housing and solder termination. This female cable connector is especially designed for heavy duty amplifier/loudspeaker applications.
- Current rating 40A continuous, 50A audio signal with 50% duty cycle
- Extremely robust metal housing designed for harsh and demanding environment
- Reinforced metal quick lock system for ease and precise locking
- Extra large solder contacts for up to 6mm² (AWG10) wires
- Uses precise quick lock system
- Spring copper contacts with silver plating contacts and zinc die-cast shell
- Cable outer dimension range from 8mm to 20mm
- Rated insulation voltage is 250V
- Flammability rating meets UL94 HB
- Temperature range from -30°C to +80°C
Področja uporabe
Audio, Consumer Electronics
Opombe
This speakON cable connector is not to be used as an AC mains or power supply connector.
Tehnični podatki
Product Range
speakON STX
Gender
Jack
Contact Plating
Silver Plated Contacts
SVHC
No SVHC (17-Jan-2022)
No. of Contacts
8 Contact
Connector Mounting
Cable Mount
Connector Body Material
Metal Body
Tehnični dokumenti (2)
Zakonodaja in okoljevarstvo
Drzava porekla
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaSwitzerland
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaSwitzerland
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
Tarifna številka:85366990
US ECCN:EAR99
EU ECCN:NLR
Skladnost z direktivo RoHS:Da
RoHS
Skladno z direktivo RoHS glede ftalatov:Da
RoHS
SVHC:No SVHC (17-Jan-2022)
Prenesi potrdilo o skladnosti z izdelkom
Potrdilo o skladnosti izdelka
Teza (kg):.12
