NLT4MX

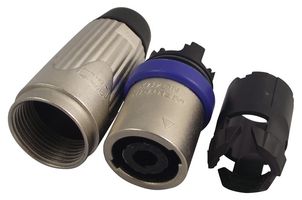

The NLT4MX is a 4-pole Male Cable Connector with metal housing, chuck type POM strain relief, quick locking device and silver-plated spring copper contacts. It has polyamide insert, zinc die-cast shell and zinc die-cast locking element. This speakON STX series cable mount connector is especially designed for heavy duty amplifier-loudspeaker applications like professional touring. The extremely rugged and durable connector features an all metal housing and a built-in gasket providing weatherproof protection to IP54 in mated condition.

• Reinforced metal quick lock system for ease and precise locking
• Mates with all available speakON products
• UL94HB Flammability rating
• IP54 Protection rating
• Solderability complies with IEC 68-2-20 standard
• <lt/>2mΩ Contact resistance (after lifetime)
• <gt/>10GΩ Insulation resistance
• 40Arms Continuous current rating per contact
• 250V Voltage rating
• -30 to +80°C Temperature range

Področja uporabe

Audio
