MP720012 EU-UK

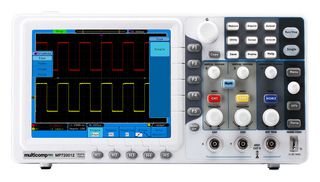

The Multicomp Pro MP720012 is a 2 channel (1 external), 100MHz, 8-bit, economical type digital storage oscilloscope. Featuring an 8" high resolution LCD colour display, ultra-thin body, pass/fail functions, SCPI and LabVIEW compatibility and newly added digital filtering and current measurement functionality.

• Large 8" high resolution LCD display (800x600)
• Auto-scale function
• Pass/fail function which compares the template signal edit by user (horizontal and vertical occupation) with input signal
• Waveform record/play function supporting 2-channel waveform and pass/fail recording
• Horizontal scale - 2ns/div~100s/div, step by 1~2~5
• 10M record length
• 8 bit vertical resolution (A/D) (2 channels simultaneously)
• 2mV/div~10V/div vertical sensitivity (at input)
• Edge, pulse, video, slope and alternative trigger types
• Auto, normal and single trigger modes
• USB host, USB device, Pass/Fail and LAN
• Dimensions - 348 x 170 x 78mm
• Device weight - 1.5kg

Vsebina

Digital Storage Oscilloscope, 2x 100MHz Probes, Probe Manual, Accessories Bag, Operating Instructions, CD-ROM, UK & EU Power Cords

Opombe

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
