MCPE1-01708NC-S

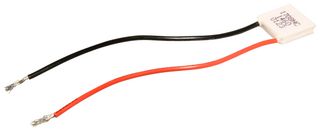

Peltier Cooler, 10.3W
Slika je zgolj simbolična. Oglejte si opis izdelka.
ProizvajalecMULTICOMP PRO
Proizvajalčeva št. delaMCPE1-01708NC-S
Številka naročila1639721
Nabor izdelkovMCPE
tehnični podatkovni list
Ni več na zalogi
INFORMACIJE O IZDELKU
ProizvajalecMULTICOMP PRO
Proizvajalčeva št. delaMCPE1-01708NC-S
Številka naročila1639721
Nabor izdelkovMCPE
tehnični podatkovni list
Transducer FunctionThermoelectric Cooler
No. of Stages1 Stage
Power Rating10.3W
Cooling Power Pc10.3W
Current Max @ Diff Temperature Max8.5A
Voltage Max @ Diff Temperature Max2.1VDC
Length15mm
Width15mm
Depth3.4mm
Temperature Difference Max70°C
Product RangeMCPE
Internal Resistance0.2ohm
Lead WiresUL-Style 1569, Unstripped
SVHCTo Be Advised
Pregled izdelka
Miniature modules available for cooling components such as infra-red detector chips, microwave IC's, fibre-optic lasers and detectors.
- Bespoke designs available
- All types of modules can be bonded using heat sink bonder
- Wide variety of finishes available for specific operating ranges or regimes
- Our standard devices cover a wide range of pellet geometries
- Single-stage modules can create systems which are effective from a few mW to few hundred Watts of cooling power
- Silicone sealed for moisture protection
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Tehnični podatki
Transducer Function
Thermoelectric Cooler
Power Rating
10.3W
Current Max @ Diff Temperature Max
8.5A
Length
15mm
Depth
3.4mm
Product Range
MCPE
Lead Wires
UL-Style 1569, Unstripped
No. of Stages
1 Stage
Cooling Power Pc
10.3W
Voltage Max @ Diff Temperature Max
2.1VDC
Width
15mm
Temperature Difference Max
70°C
Internal Resistance
0.2ohm
SVHC
To Be Advised
Tehnični dokumenti (1)
Povezani izdelki
Št. najdenih izdelkov 2
Zakonodaja in okoljevarstvo
Drzava porekla
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaChina
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaChina
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
Tarifna številka:84186900
US ECCN:EAR99
EU ECCN:NLR
Skladnost z direktivo RoHS:Da
RoHS
Skladno z direktivo RoHS glede ftalatov:Da
RoHS
SVHC:To Be Advised
Prenesi potrdilo o skladnosti z izdelkom
Potrdilo o skladnosti izdelka
Teza (kg):.009525
