2MD6T1B5M2RE

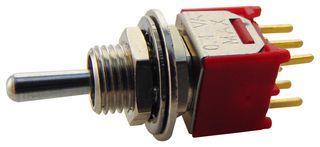

The 2MD6T1B5M2RE is a double-pole double-throw (DPDT) subminiature Toggle Switch with PVC through-hole termination, ON-ON-ON function, 5.33 mm high chrome plated brass actuator and 5.59 mm high flat nickel plated brass bushing (THD). The 2MD series switch has stainless steel housing and tin plated brass switch support.

• Epoxy seal (standard)
• 20mΩ at 2 to 4VDC 100mA Maximum initial contact resistance
• 1000MΩ Minimum insulation resistance
• 1000Vrms at sea level Dielectric strength
• -30 to +85°C Operating temperature range
• Multicomp Pro products are rated 4.6 out of 5 stars
• 12 month limited warranty *view Terms & Conditions for details
• 96% of customers would recommend to a friend

Področja uporabe

Industrial
