MP-19-70-4-TGG

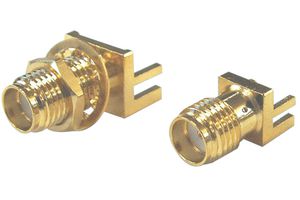

The 19-70-4-TGG from Multicomp Pro is a SMA edge (end) launch jack connector for PC board application. The relative dimension for PC board thickness is 0.068". SMA connectors are semi-precision, subminiature devices that provide repeatable electrical performance from DC to 12.4GHz with flexible cable. Semi-rigid cabling extends the frequency range of the device to 18GHz. These devices offer broadband performance with low reflection and constant 50 ohm impedance. These properties along with minimum attenuation and low VSWR have made the SMA connectors extremely popular in the microwave community.

• Gold plated centre contact and body
• Polytetrafluoroethylene insulator
• Connector interface per MIL-STD-348 A standards
• Multicomp Pro products are rated 4.6 out of 5 stars
• 12 month limited warranty *view Terms & Conditions for details
• 96% of customers would recommend to a friend

Področja uporabe

Industrial, RF Communications, Communications & Networking

Opozorila

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
