39-00-0186
Contact, Mini-Fit Jr. 5556, Socket, Crimp, 16 AWG, Gold Plated Contacts
Potrebujete več?
| Količina | |
|---|---|
| 1+ | € 0,926 |
| 10+ | € 0,668 |
| 50+ | € 0,568 |
| 100+ | € 0,534 |
| 500+ | € 0,486 |
| 1000+ | € 0,464 |
INFORMACIJE O IZDELKU
Pregled izdelka

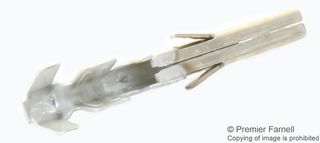

The 39-00-0186 is a Mini-Fit® female socket crimp terminal made of phosphor bronze with gold plated finish. This 5556 series female crimp terminal accepts 16AWG wire. The socket terminal mates with 5558 Mini-Fit® crimp male terminals, 5566 and 5569 dual row Mini-Fit Jr.™ header. It can be used with 5557 Mini-Fit Jr.™ receptacle housing, 30067 Mini-Fit® TPA, 42474 Mini-Fit® BMI panel mount and 44516 Mini-Fit® BMI slide and lock panel mount. The terminal is suitable for power applications.
- Maximum current per contact is 9A
- Maximum voltage is 600V
- Maximum durability of 30 mating cycles
Področja uporabe
Automotive, Commercial Vehicle, Communications & Networking, Consumer Electronics, Industrial, Medical, Communications & Networking
Tehnični podatki
Mini-Fit Jr. 5556
Crimp
Gold Plated Contacts
-
No SVHC (21-Jan-2025)
Socket
16AWG
Molex Mini-Fit Jr. 5557, Mini-Fit TPA 30067 & Mini-Fit BMI 42474, 44516 Series Housing Connectors
Phosphor Bronze
Tehnični dokumenti (2)
Alternative za 39-00-0186
Št. najdenih izdelkov 3
Povezani izdelki
Št. najdenih izdelkov 2
Zakonodaja in okoljevarstvo
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaUnited States
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
RoHS
RoHS
Potrdilo o skladnosti izdelka
