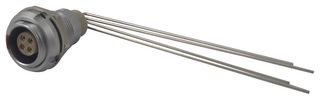

ECG.0B.304.CLV

The ECG.0B.304.CLV is a 4-way Circular Connector, 0B series, fixed receptacle with two nuts, back panel mounting. Single key, male (plug) contacts and female (socket) contacts. Push-pull self-latching system with four elbow or print contacts. Chrome-plated brass shell and collect nut, nickel-plated brass latch sleeve and mid pieces. The modular design of the 0B series connector offers a solution for most applications. The push pull latching mechanism provides a secure connection whilst the density of the contacts provides for considerable panel space savings. Multi key options prevent cross mating of similar connectors within a panel. The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality.

• 6A Current rating
• PEEK insulator
• G Key standard
• IP50 Protection rating
• 5000 Maximum matings
• 6.1mΩ Maximum resistance
• 0.7mm Contact diameter
• 360° Screening for full EMC shielding
• 4 Low voltage insert configuration

Področja uporabe

Industrial, Automotive, Communications & Networking, Medical, Test & Measurement, Aerospace, Defence, Military
