73220224

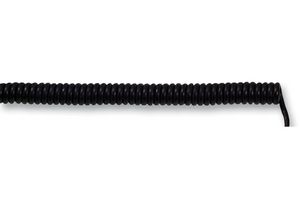

The 73220224 is a 6-conductor unshielded Spiral Cable with extra fine wire strands of bare copper according to IEC 60228 resp. VDE 0295, class 6 standards, black PU jacket and 26AWG wire. The UNITRONIC® SPIRAL cable is used wherever screened cables with smallest dimensions are required, eg. In measuring and controlling engineering. The UNITRONIC® SPIRAL cable has an overall screening, which defends interferences and guarantees accurate pulse transmission. High flexibility affords extended lengths of up to 4 times the un-extended spiral length. The UNITRONIC® LiYD11Y is a flexible data cable for weak-current applications. The cut resistant polyurethane outer sheath is largely resistant to the action of acids, caustic solutions and certain oils and to abrasion. UNITRONIC® LiYD11Y is intended for use in dry and damp interiors.

• CPR: Not Yet Qualified
• PUR outer sheath and overall shielding for exact impulse transmission
• Overall screening prevents high frequency interference and guarantees accurate signal transmission
• Extended lengths of up to 4 times the un-extended spiral length
• Mechanical resistance
• Oil-resistant
• Interference signals
• Secure against electrical interferences
• Screening, wrapped with braided copper wires
• Abrasion- and cut-resistant
• Very high flexibility

Področja uporabe

Test & Measurement, Automation & Process Control
