00243-2

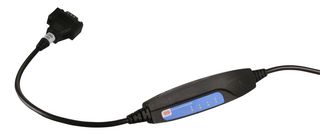

Kvaser Leaf Professional is a one channel, high performance, USB interface for High Speed CAN. A versatile and powerful interface that offers easy connection between your PC and CANbus network, it includes Kvaser's patented MagiSync feature for synchronized time-stamping, Galvanic Isolation for protection against voltage spikes, and Auto Transmit for placing messages on the bus at set intervals.

• Messages are time-stamped and synchronized with a precision of 1 microsecond.
• Handles up to 20000 messages per second, time stamped and synchronised with a precision of 1 microsecond.
• Auto transmit buffers, to send messages on a defined interval
• Auto response buffers, to send messages on a defined event
• Supports both 11bit (CAN 2.0A) and 29bit (CAN 2.0B active) identifiers
• Excellent error handling
• Supports silent mode for analyzing tools
• Low power consumption
• Excellent EMC performance
• Polyurethane cabling for extreme environments.
• Interfaces the CAN bus with a 9-pin D-SUB connector
• Galvanic isolation of the CAN bus driver stage to protect the hardware
• Labeled CAN channel for easy identification of the supported physical layer
• 100% compatible with applications written for all Kvaser hardware with KVASER's CANlib.
• Equipped with a 110 cm (44 in.) long USB cable and a 30 cm (12 in.) long CAN cable.
• Designed for USB 2.0, backward compliant with USB 1.1
• Quick and easy Plug-and-Play installation

Področja uporabe

Communications & Networking, Multimedia, Portable Devices, Automotive
