DAQ970SB

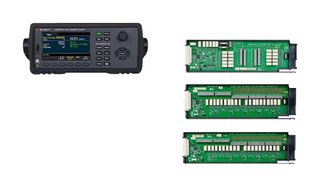

DAQ970SB is a 3-slot data acquisition mainframe with two 20-channel switch modules and one 20-channel multiplexer module. The DAQ970SB good switching bundle offer includes a DAQ970A single 3-slot data acquisition mainframe (USB and LAN), two 20-channel DAQM903A actuator/GP switch modules, and one 20-channel DAQM901A multiplexer module. It features built-in signal conditioning to measure thermocouples, RTDs and thermistors, AC / DC volts and current; resistance, frequency / period, diode test, and capacitance.

• 3-slot mainframe with USB and LAN
• 6.5-digit (22-bit) internal DMM, 80 channels/s scanning
• 60 channels of multiplexer switches
• 6 channels of dedicated current measurements
• 2- and 4-wire scanning, 300V switching
• Built-in thermocouple reference junction
• 20-channel actuator/general-purpose switch with independent single-pole, double-throw (SPDT) relays

Vsebina

DAQ970A single 3-slot data acquisition mainframe (USB and LAN), Two 20-channel DAQM903A actuator/GP switch modules, and one 20-channel DAQM901A multiplexer module.

Opombe

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
