REF5QR2280BG124W1TOBO1

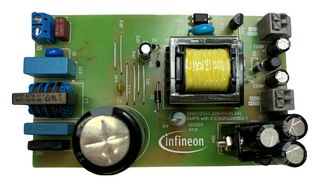

REF5QR2280BG124W1TOBO1 is a reference board using the latest CoolSET™ 5th Generation Quasi Resonant Plus ICE5QR2280BG-1 switching controller. This 24W auxiliary SMPS reference design operates under a wide range input developed with indoor residential air-conditioning application in mind. It features the new CoolSET™ 5th Generation Quasi Resonant Plus ICE5QR2280BG-1 with 800m V integrated MOSFET in DSO-12 package. Suitable for AC-DC power conversion for telecom infrastructure, Heating ventilation and air conditioning (HV AC), home appliances, refrigerators and freezers applications.

• Universal input: 85 to 300V AC, 50/60Hz
• Output 1: 12V, output current 1: 1.92A
• Output 2: 5V and output current 2: 0.2A
• Robust operation
• Digital frequency reduction
• Programmable burst mode
• Integrated 800V MOSFET
