FP40R12KE3BOSA1
IGBT Module, PIM Three Phase Input Rectifier, 55 A, 2.3 V, 200 W, 125 °C, EconoPIM

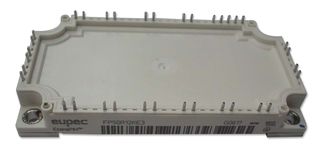

Slika je zgolj simbolična. Oglejte si opis izdelka.
ProizvajalecINFINEON
Proizvajalčeva št. delaFP40R12KE3BOSA1
Številka naročila1496944
Nabor izdelkovEconoPIM 2
Znano tudi kotFP40R12KE3, SP000083565
Umaknjeno iz proizvodnje
INFORMACIJE O IZDELKU
ProizvajalecINFINEON
Proizvajalčeva št. delaFP40R12KE3BOSA1
Številka naročila1496944
Nabor izdelkovEconoPIM 2
Znano tudi kotFP40R12KE3, SP000083565
Transistor PolarityN Channel
IGBT ConfigurationPIM Three Phase Input Rectifier
Continuous Collector Current55A
DC Collector Current55A
Collector Emitter Saturation Voltage Vce(on)2.3V
Collector Emitter Saturation Voltage2.3V
Power Dissipation200W
Power Dissipation Pd200W
Operating Temperature Max125°C
Junction Temperature Tj Max125°C
Collector Emitter Voltage V(br)ceo1.2kV
Transistor Case StyleEconoPIM
No. of Pins24Pins
IGBT TerminationPress Fit
Collector Emitter Voltage Max1.2kV
IGBT TechnologyIGBT 3 [Trench/Field Stop]
Transistor MountingPanel
Product RangeEconoPIM 2
SVHCNo SVHC (17-Jan-2023)
Alternative za FP40R12KE3BOSA1
1 najden izdelek
Pregled izdelka
The FP40R12KE3 is a 3-phase 1200V PIM IGBT module with Trench/Fieldstop IGBT3 emitter controlled diode and NTC. It features low stray inductance module design and copper base plate for optimized heat spread as well as solderable pins.
- High reliability and power density
- Low switching losses
- High switching frequency
- Configuration flexibility
- Compact module concept
