INFORMACIJE O IZDELKU
Pregled izdelka

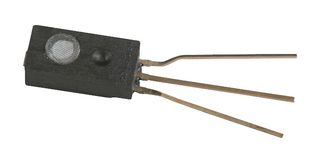

HIH-4021 series humidity sensors are designed specifically for high volume OEM (Original Equipment Manufacturer) users. Direct input to a controller or other device is made possible by this sensor’s near linear voltage output. With a typical current draw of only 200µA, the HIH-4021 series is often ideally suited for low drain, battery operated systems. Tight sensor interchangeability reduces or eliminates OEM production calibration costs. Individual sensor calibration data is available. The HIH-44021 series delivers instrumentation quality RH (Relative Humidity) sensing performance in a competitively priced, solderable SIP (Single In-line Package). HIH-4021 is a covered, condensation-resistant, integrated circuit humidity sensor. Available in two lead space configurations. Applications include refrigeration equipment, HVAC, medical equipment, drying, metrology, battery-powered systems and OEM assemblies.
- Covered, filtered integrated circuit humidity sensor, 2.45mm (0.100inch) lead pitch SIP
- Moulded thermoset plastic housing
- Near linear voltage output vs %RH
- Laser trimmed interchangeability
- Low power design, enhanced accuracy
- Fast response time
- Stable, low drift performance
- Chemically resistant
- Calibration and data printout
Tehnični podatki
Relative
5.8V
3.5%
4VDC
SIP
3Pins
Through Hole
85°C
-
3.5%
0% to 100% Relative Humidity
SIP
5.8VDC
5s
-
-40°C
HIH-4021 Series
No SVHC (07-Jul-2017)
Tehnični dokumenti (4)
Zakonodaja in okoljevarstvo
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaMexico
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
RoHS
RoHS
Potrdilo o skladnosti izdelka
