SIM8055-6-1-14-00-A

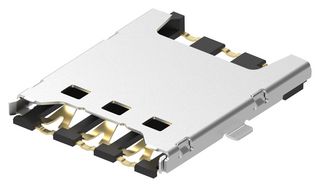

The SIM8055-6-1-14-00-A is a Nano SIM connector with innovative card detection switch. It features a normally open card detect (CD) C7 mechanism shares the space with contact 5 (C5). The circuit is closed once a nano SIM card is inserted. It comes with a locating peg as standard for PCB stability, and is packaged in a tape and reel format, enabling easy pick and place assembly. It offers one of the smallest footprints available on the market with card detect functionality (12.2mm length and 9.54mm width).

• Surface mount
• 1.35mm profile
• Polarised card stop
• Metallic Shell: Stainless Steel SUS301
• Voltage Rating: 30V Max
• Current Rating: 0.5A Max
• Durability: 5,000 cycles

Področja uporabe

Computer Hardware, Computers & Computer Peripherals, Smartphones, Telecommunications
