TTL-232R-3V3-AJ
Cable, USB to TTL, Serial Converter, 3V3, Audio Jack, 1.8m
100 Izdelek na zalogi lahko rezervirate že zdaj.
| Količina | |
|---|---|
| 1+ | € 23,690 |
| 5+ | € 23,200 |
| 10+ | € 22,710 |
| 50+ | € 22,240 |
| 100+ | € 21,760 |
INFORMACIJE O IZDELKU
Pregled izdelka

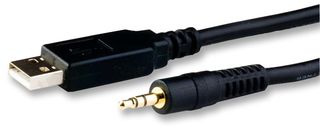

The TTL-232R-3V3-AJ from FTDI is an USB to UART cable with +3.3V TTL level UART signals. It incorporates FTDI's FT232RQ USB to serial UART interface IC which handles all the USB signalling and protocols. The cable provides fast, simple way to connect devices with TTL level serial interface to USB. It contains small internal electronic circuit board utilising FT232R which is encapsulated into USB connector at end of the cable. The cable is terminated with 3.5mm audio jack (AJ) connector at other and. The USB side of the cable is USB powered and USB 2.0 full speed compatible.
- Cable length of 1.8m (6feet)
- UHCI/OHCI/EHCI host controller compatible
- Diameter of 5mm
- 24AWG, 2 core and spiral cable
- Data transfer rates from 300baud to 3Mbaud at TTL levels
- Connect directly to a microcontroller UART or I/O pins
- Low USB bandwidth consumption
- FCC and CE compliant
- Support for FT232R FTDIChip-ID feature for improved security
- Operating temperature range from -40°C to 85°C
Področja uporabe
Communications & Networking, Industrial
Tehnični podatki
0
3.5mm Audio Jack
1.8m
-
3Mbaud
FT232R
5.9ft
No SVHC (21-Jan-2025)
Tehnični dokumenti (1)
Povezani izdelki
1 najden izdelek
Zakonodaja in okoljevarstvo
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaChina
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
RoHS
RoHS
Potrdilo o skladnosti izdelka
