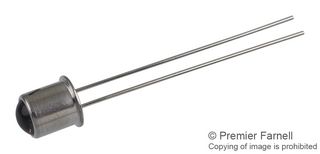

VTB1113H

The VTB1113H is a blue enhanced Silicon Photodiode with 1.6mm² active area designed for spectral response between 320 and 1100nm. This series of P on N silicon planar photodiode has been designed for optimum response through the visible part of the spectrum. This photodiode is primarily intended to be used in photovoltaic mode but may be used with a small reverse bias. It also been designed to exhibit very high shunt resistance, a characteristic which leads to low offsets when used in high gain trans-impedance op-amp circuits.

• UV to IR spectral range
• 920nm Peak wavelength
• Small active area
• 1 to 2% Linearity over 7 to 9 decades
• Very low dark current
• Very high shunt resistance

Področja uporabe

Sensing & Instrumentation, Metering, Lighting
