MAX17262XEVKIT#

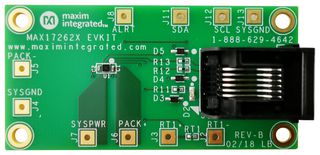

MAX17262X evaluation kit (EV kit) is a fully assembled and tested SMD PCB to evaluate the stand-alone ModelGauge™m5 host-side fuel-gauge IC for lithium-ion (Li+) batteries in handheld and portable equipment. This EV kit includes the DS91230+ USB interface, IC Evaluation-board and RJ-11 connection cable. Suitable applications are Bluetooth headset cases, handheld computers and terminals, health and fitness monitors, home and building automation, sensors, medical devices, toys, wearables and smartwatches.

• ModelGauge™ m5 algorithm
• Monitors from 1S cell packs
• Battery pack input voltage range of 2.3V to 4.9V
• Thermistor measurement network
• Windows 7 or newer compatible software
• Proven PCB layout
• Fully assembled and tested

Vsebina

IC evaluation board, DS91230+ USB interface, RJ-11 connection cable.

Opombe

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
