5747841-4
D Sub Connector, DB15, Standard, Plug, AMPLIMITE HD-20, 15 Contacts, DA, Solder
Obvestite me, ko bo izdelek spet na zalogi.
| Količina | |
|---|---|
| 1+ | € 4,970 |
| 10+ | € 4,120 |
| 100+ | € 3,640 |
| 250+ | € 3,480 |
| 500+ | € 3,450 |
| 1000+ | € 3,410 |
INFORMACIJE O IZDELKU
Pregled izdelka

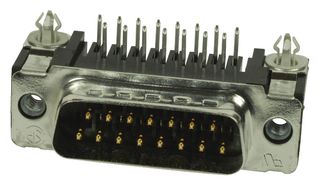

The 5747841-4 is a 15-way 2-row front metal shell D-sub Plug with gold-plated brass contacts and clear chromate-plated zinc 4-40 UNC threaded inserts. The Amplimite HD-20 series right angle posted plug comes with grounding indents, grounding straps, black nylon/polyester housing, tin-plated brass eyelet, tin-plated carbon steel shell and tin-plated solder tail. Plugs are preloaded with size 20 DF posted pin contacts. Connectors are intermateable with any size 20 subminiature D connectors dimensionally complying with MIL-C-24308. The front metal-shell design is compatible with full metal-shell connectors.
- UL94V-0 Flammability rating
- Right angle through hole PCB mounting
- Copper alloy boardlock
Področja uporabe
Industrial, Computers & Computer Peripherals
Tehnični podatki
Standard
AMPLIMITE HD-20
DA
Through Hole Mount Right Angle
Gold over Palladium Nickel, Gold
No SVHC (21-Jan-2025)
Plug
15Contacts
Solder
Brass
Carbon Steel Body
Alternative za 5747841-4
Št. najdenih izdelkov 7
Povezani izdelki
Št. najdenih izdelkov 3
Zakonodaja in okoljevarstvo
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaMexico
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
RoHS
RoHS
Potrdilo o skladnosti izdelka
