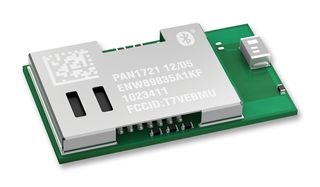

ENW89835A1KF

The PAN1721 is a cost-effective, ultra low-power, system-on-chip (SoC) for Bluetooth Low Energy applications. The module includes an eight channel, twelve bit analogue-to-digital converter, 19 GPIOs plus battery and temperature sensors. The PAN1721 combines an excellent RF transceiver with a high performance low power 8051 microcontroller, in-system programmable flash memory, 8-KB RAM, and many other powerful supporting features and peripherals. The PAN1721 is an ideal choice for applications where battery life is a critical application requirement, using only 500 nA in sleep mode. Short transition times between operating modes-3 uS Wake-Up - and power efficient hardware further reduce current consumption.

• Supports user developed applications
• 256K flash, 8K RAM
• Supports 1 Mbps data rate
• Eight channel 12-bit ADC
• 19 GPIOs
• Battery monitor and temperature sensor
• Certifications: Bluetooth, FCC, IC and CE
• Texas Instruments Stack
• Receive sensitivity: -94dBm @ BER 10-3
