FSW802B
Airflow Sensor with Mounting Clip and Clamp, FSW800B Series, Normally Open, 492CFM

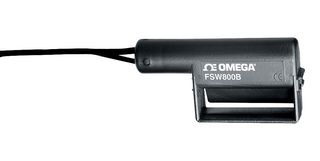

Slika je zgolj simbolična. Oglejte si opis izdelka.
ProizvajalecOMEGA
Proizvajalčeva št. delaFSW802B
Številka naročila3805667
Nabor izdelkovFSW800B Series
tehnični podatkovni list
Umaknjeno iz proizvodnje
INFORMACIJE O IZDELKU
ProizvajalecOMEGA
Proizvajalčeva št. delaFSW802B
Številka naročila3805667
Nabor izdelkovFSW800B Series
tehnični podatkovni list
Flow Switch TypeSPST-NO
Flow Rate Max492CFM
Switching Voltage DC Max60V
Media TypeAir
Housing MaterialPlastic
Operating Temperature Min-20°C
Operating Temperature Max50°C
Product RangeFSW800B Series
SVHCNo SVHC (17-Jan-2022)
Pregled izdelka
FSW802B is a FSW800B series, air-flow monitor. It provides a simple but reliable alternative to indicate positive or negative air flow of fans. When properly installed and connected in series with an optical (i.e. LED) or audible signalling device, a bi-directional switch will activate an electrical contact if the air flow of the fan falls below 8.2ft/s, thus either turning the signalling device on or off.
- Reliable mechanical switch contact
- Small size and economical, 1 year warranty
- NO (normally open): contact closed with air flow
- Versatile fields of application
- Contact resistance Incl. wire is 370m, >100,000 cycles service life
- 60VDC max switching voltage, 170mA max switching current
- NEMA 1 (IP20) protection, plastic, black housing
- Dimension is 34 x 17.5 x 7.5mm
- 10W (resistive load) max switching capacity
- Operating temperature range from -20 to 50°C
Vsebina
Air-flow monitor, Operator’s manual.
Tehnični podatki
Flow Switch Type
SPST-NO
Switching Voltage DC Max
60V
Housing Material
Plastic
Operating Temperature Max
50°C
SVHC
No SVHC (17-Jan-2022)
Flow Rate Max
492CFM
Media Type
Air
Operating Temperature Min
-20°C
Product Range
FSW800B Series
Tehnični dokumenti (1)
Zakonodaja in okoljevarstvo
Drzava porekla
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaChina
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaChina
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
Tarifna številka:90268080
US ECCN:EAR99
EU ECCN:NLR
Skladnost z direktivo RoHS:Ne
Skladno z direktivo RoHS glede ftalatov:Ne
SVHC:No SVHC (17-Jan-2022)
Prenesi potrdilo o skladnosti z izdelkom
Potrdilo o skladnosti izdelka
Teza (kg):.03175
