781442-01
Multifunction I/O Device, USB-6361, 2 MSPS, 16bit, 16 I/P, 2 O/P, 24 I/O, ± 10V, USB 2.0, DAQ Device
2 Izdelek na zalogi lahko rezervirate že zdaj.
| Količina | |
|---|---|
| 1+ | € 2.853,000 |
INFORMACIJE O IZDELKU
Pregled izdelka

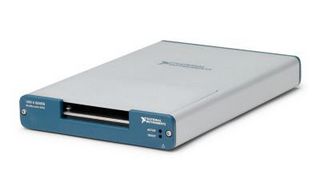

781442-01 is a USB-6361 16 AI (16-bit, 2MS/s), 2 AO (2.86MS/s), 24 DIO USB multifunction I/O device. The USB-6361 offers analogue I/O, digital I/O, and four 32-bit counters/timers for PWM, encoder, frequency, event counting, and more. Onboard NI-STC3 timing and synchronization technology delivers advanced timing functionality, including independent analogue and digital timing engines and retriggerable measurement tasks. The USB-6361 is well suited for a broad range of applications, from basic data logging to control and test automation. The included NI-DAQmx driver and configuration utility simplify configuration and measurements.
- Supply voltage range from ±100mV to ±10V
- Operating temperature range from 0°C to +45°C
Tehnični podatki
Multifunction I/O Device
16bit
2Channels
± 100mV to ± 10V
NI DAQ Devices
To Be Advised
2MSPS
16Channels
24I/O's
0°C to +45°C
USB-6361
