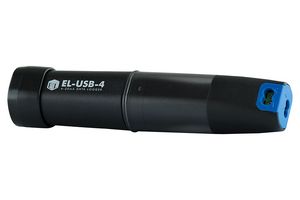

EL-USB-4

Measures and stores over 32,000 current loop readings over a 4-20mA d.c. measurement range. The user can easily set up the logging rate and start time, and download the stored data by plugging the module into a PC's USB port and running the software (available as a free download from www.easylogusb.com). The data can then be graphed, printed and exported to other applications. Correct functioning of the unit is indicated by a flashing red and green LED.

• 4-20mA d.c. Current Loop Measurement Range
• Stores 32,000 readings
• Supplied software supports Windows 98SE/2000/XP
• USB Interface for Set-up and Data Download
• User-Programmable Alarm Thresholds
• Red and Green LED Status Indication
• At least one years continuous operation from supplied lithium battery
• 3 year battery life

Področja uporabe

Test & Measurement, Industrial

Vsebina

Data Logger, Set of Measurement Leads Terminating in Crocodile Clips, ½ AA Battery and Wall Mount Clip.

Opombe

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
