BT913

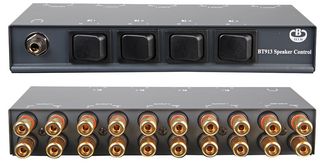

This unit allows 4 pairs of speakers and a pair of headphones to be connected to a single stereo amplifier. The operational loudspeakers are then selected in pairs by means of four front panel switches. The headphone socket is parallel wired and does not mute the speakers when in use. The unit protects the amplifier by ensuring that the load presented does not fall to less than half the loudspeaker in use.

• 200W RMS per channel rating
• Switched operation allows any combination of speaker pairs to be operational at the same time
• Gold plated screw terminals for reliable speaker connection
• Terminals accept wire up to 6mm diameter or 4mm banana plugs
• Silver plated switch contacts prevent switch losses
• Robust and stylish slimline metal casing
• Dimensions (WxHxD): 125x40x95mm

Opozorila

Care is needed when using bare ended speaker wire. To avoid possible short circuits, strip speaker wire no more than 6mm (¼"). Unit no longer mutes speakers when headphones are connected.

Opombe

Note: Speakers must be a minimum of 8 ohms
