RX FM8SF
RF MODULE, RECEIVER, FM, 868.30MHZ

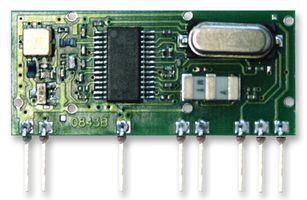

Slika je zgolj simbolična. Oglejte si opis izdelka.
Ni več na zalogi
INFORMACIJE O IZDELKU
ProizvajalecAUREL
Proizvajalčeva št. delaRX FM8SF
Številka naročila1699485
tehnični podatkovni list
RF ModulationFM
Data Rate Max-
Frequency868.3MHz
Sensitivity dBm-111dBm
Supply Voltage Min4.5V
Supply Voltage Max5.5V
Supply Current7mA
Supported Devices - RF Receivers-
RF Receiver Applications-
Product Range-
SVHCNo SVHC (17-Dec-2014)
Pregled izdelka
RX-FM4SF is a super-heterodyne FM receiver with high sensitivity and selectivity. It is equipped by front-end SAW filter that allows an high noise immunity. Enable pin allows to reach power down mode without signal and reduce consumption up to 0.5µA . It is ideal for Microchip Keeloq encoders. It is used in association with TX 869 BOOST transmitter obtains a complete system with an high budget link and useful to take advantage of the best transmitter technical features.
- Front-end SAW filtered to an higher electromagnetic immunity
- High sensitivity and sensibility super-heterodyne FM receiver
- Ideal for Microchip Keeloq encoders
- Enable pin allows to reach power-down mode without signal and reduce consumption up to 0.5 µA
- Low cost FM receiver
Področja uporabe
Communications & Networking, Wireless, Security
Tehnični podatki
RF Modulation
FM
Frequency
868.3MHz
Supply Voltage Min
4.5V
Supply Current
7mA
RF Receiver Applications
-
SVHC
No SVHC (17-Dec-2014)
Data Rate Max
-
Sensitivity dBm
-111dBm
Supply Voltage Max
5.5V
Supported Devices - RF Receivers
-
Product Range
-
Tehnični dokumenti (1)
Zakonodaja in okoljevarstvo
Drzava porekla
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaItaly
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaItaly
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
Tarifna številka:85389091
US ECCN:EAR99
EU ECCN:NLR
Skladnost z direktivo RoHS:Da
RoHS
Skladno z direktivo RoHS glede ftalatov:Bo naknadno sporočeno
SVHC:No SVHC (17-Dec-2014)
Prenesi potrdilo o skladnosti z izdelkom
Potrdilo o skladnosti izdelka
Teza (kg):.005
