RX-4MM5
434 MHz AM OOK Super-HET Receiver, 433.92 MHz Frequency, High Selectivity and Sensibility

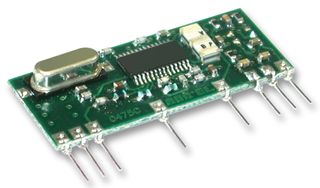

Slika je zgolj simbolična. Oglejte si opis izdelka.
Ni več na zalogi
INFORMACIJE O IZDELKU
ProizvajalecAUREL
Proizvajalčeva št. delaRX-4MM5
Številka naročila1699487
tehnični podatkovni list
RF Modulation-
Data Rate Max-
Frequency433.92MHz
Sensitivity dBm-114dBm
Supply Voltage Min4.5V
Supply Voltage Max5.5V
Supply Current7.5mA
Supported Devices - RF Receivers-
RF Receiver Applications-
Product Range-
SVHCNo SVHC (17-Dec-2014)
Pregled izdelka
RX-4MM5 is a Super-heterodyne receiver requires 5V of supply voltage and is designed to recover sequences of digital data transmission via AM OOK modulation at 433.92MHz. It has very high sensitivity of -114dBm and the frequency image rejection obtained through a new circuital technique. The RX4MM5 provides an RSSI output that implies the distance information from the correspondent transmitter and gives the measure of the received RF power.
- Super-heterodyne receiver requires 5V of supply voltage
- AM OOK modulation at 433.92MHz
- Very high sensitivity
- RSSI output proportional to the amplitude of the input signal
- Frequency image rejection obtained through a new circuital technique
- Dimension of 38.9 x 17.51 x 5.2mm
Področja uporabe
Wireless, Communications & Networking, RF Communications
Tehnični podatki
RF Modulation
-
Frequency
433.92MHz
Supply Voltage Min
4.5V
Supply Current
7.5mA
RF Receiver Applications
-
SVHC
No SVHC (17-Dec-2014)
Data Rate Max
-
Sensitivity dBm
-114dBm
Supply Voltage Max
5.5V
Supported Devices - RF Receivers
-
Product Range
-
Tehnični dokumenti (1)
Povezani izdelki
Št. najdenih izdelkov 2
Zakonodaja in okoljevarstvo
Drzava porekla
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaItaly
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaItaly
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
Tarifna številka:85389091
US ECCN:EAR99
EU ECCN:NLR
Skladnost z direktivo RoHS:Da
RoHS
Skladno z direktivo RoHS glede ftalatov:Bo naknadno sporočeno
SVHC:No SVHC (17-Dec-2014)
Prenesi potrdilo o skladnosti z izdelkom
Potrdilo o skladnosti izdelka
Teza (kg):.003
