MAXREFDES130#

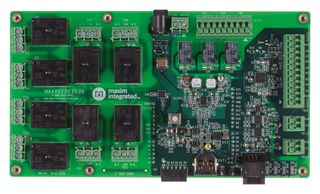

The MAXREFDES130# is an Arduino form factor building automation shield. This shield is compatible with ARM, mbed and Arduino platforms providing a complete reference for prototyping next building automation design. This unique design includes eight 0VDC-10VDC analogue outputs, one 4-20mA output, one 4-20mA input, eight nonlatching relays, three latching relays, RTC and 1-Wire master. The MAXREFDES130# works well with one or more of the MAXREFDES131#, the 1-Wire, Grid EYE sensor to make a complete building automation solution. It contains onborad IC's such as MAX17521 non latching relay (5V/7.3V), 12V MAX15062 positive supply, 5V MAX5091A analogue supply, 3.3V MAX5091B digital supply, -2V MAX889 negative supply, MAX3392, MAX3393 and MAX3394 logic-level translation, MAX4822 relay driver, DS3231 RTC, MAX11300 PIXI, DS2484 1-Wire master, MAX44244 op-amp. This device is used in building automation, IoT, animatronics and holiday displays.

• Accelerated development time
• AC load switching
• Flexible analogue for multiple configurations
• Ease of use
• Latching relays for thermostat control

Področja uporabe

Building Automation, Embedded Design & Development
