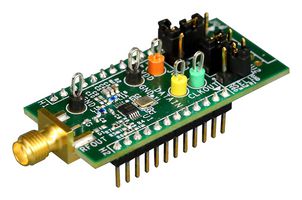

MAX41464EVKIT-868

Evaluation kit (EV kit) contains a single MAX41464 high output power VHF/UHF sub-GHz ISM/ SRD transmitter. It is designed to transmit Frequency-Shift Keying (FSK), Gaussian GFSK or Amplitude-Shift Keying (ASK) data in the 286MHz to 960MHz frequency range. It is suitable for automatic meter reading (AMR), building automation and security, garage door openers (GDO), Internet of Things (IoT), radio control toys, remote and passive keyless entry (RKE/PKE), tire pressure monitoring systems (TPMS), wireless sensors and alarms.

• Single input voltage supply from 1.8V to 3.6V
• Direct interface with a MAX32630FTHR ARM microcontroller (MCU) board
• Available Pmod hardware interface
• Windows 7/10-compatible software
• On-board SPI interface control for the MAX41460 and optional I2C control for the MAX41461-MAX41464
• GUI controls for MAX32630FTHR board PMIC operation from 1.8V to 3.3V
• Proven 2-layer PCB design
• Fully assembled and tested
