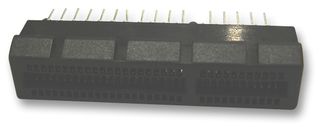

10018783-11111TLF
Card Edge Connector, PCI, Dual Side, 1.57 mm, 64 Contacts, Through Hole Mount, Straight
3600 Izdelek na zalogi lahko rezervirate že zdaj.
| Količina | |
|---|---|
| 1+ | € 1,380 |
| 10+ | € 1,110 |
| 100+ | € 0,700 |
| 500+ | € 0,686 |
| 1000+ | € 0,672 |
| 2500+ | € 0,669 |
INFORMACIJE O IZDELKU
Pregled izdelka
The 10018783-11111TLF is a 64-way 2-row PCI Express Card Edge Female Connector, 2mm row pitch and solder termination. Copper alloy contacts with gold over nickel finish. This 1.0mm pitch, vertical card edge connector is used to implement PCI Express® architecture in desktop PCs, workstations and servers. The base connector family offers one to 16 high-speed serial PCI Express Lanes. Each serial lane supports 2.5Gbps (per direction) in a 100Ω Gen1 system or 5.0Gbps in a Gen2 system with an 85Ω differential environment. Base connector range offers 1, 4, 8 or 16 serial PCI Express links to scale to different bandwidth requirements.
- High-temperature thermoplastic (UL94V-0) for reflow or thermoplastic (UL94V-0) for wave soldering
Področja uporabe
Computers & Computer Peripherals, Industrial
Tehnični podatki
Dual Side
1mm
Through Hole Mount
Solder
Copper Alloy
Nylon (Polyamide) Body
No SVHC (21-Jan-2025)
1.57mm
64 Contacts
Straight
2Rows
15µ" Gold Plated Contacts
FCI 10018783
Tehnični dokumenti (4)
Alternative za 10018783-11111TLF
1 najden izdelek
Zakonodaja in okoljevarstvo
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.Drzava poreklaChina
Država, v kateri je bila izvršena zadnja pomembnejša dodelava.
RoHS
RoHS
Potrdilo o skladnosti izdelka
