GEN4-4DCAPE-50CT-CLB

Capacitive touch Gen4 LCD CAPE module with cover lens bezels (CLB) and 5" primary TFT display. This module features a capacitive touch screen controlled by a Focaltech capacitive touch controller which interfaces the display and Beagle Bone Black (BBB) via I2C protocol. The Beagle Bone Black (BBB) connects directly to an adaptor CAPE using a 30 way FFC ribbon cable. The LCD CAPE requires power and display signals which are provided from the BBB directly via the adapter and FFC ribbon cables.

• 4DCAPE is not compatible with the Beagle Bone White and can only be used with Beagle Bone Black
• 800 x 480 resolution
• EEPROM CAPE ID selection via DIP switch
• Offers significant improvement over the analogue interface of previous 4DCAPE models
• RoHS and CE compliant

Področja uporabe

Embedded Design & Development, Displays, Electronics Design, Hobby & Education, Consumer Electronics

Vsebina

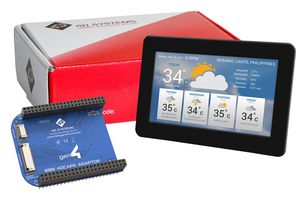

Module gen4-4DCAPE-50CT, gen4-4DCAPE adaptor, 30 way FFC cable.

Opombe

Please note this product is only complatible with Beagle Bone Black and will not work with Beagle Bone White
