The NEW TBS2000B Oscilloscope Series - More features, exceptional performance

Now up to 15% off with our introductory offer. While stock lasts.

The TBS2000B Series of Oscilloscopes with a 9-inch WVGA display, 5 million point record length and 2 GS/s sample rate, capture and display significantly more signal to help you debug and validate the designs faster. Easily and confidently analyse your signals with new on-waveform cursor readouts and 32 automated measurements, each with informative tips. The TekVPI® probe interface supports traditional passive BNC probes, but also enables wide application coverage with the latest active voltage probes and current probes.

All of this at same price of the old TBS2000 series, save up 15% - While Stock Lasts.

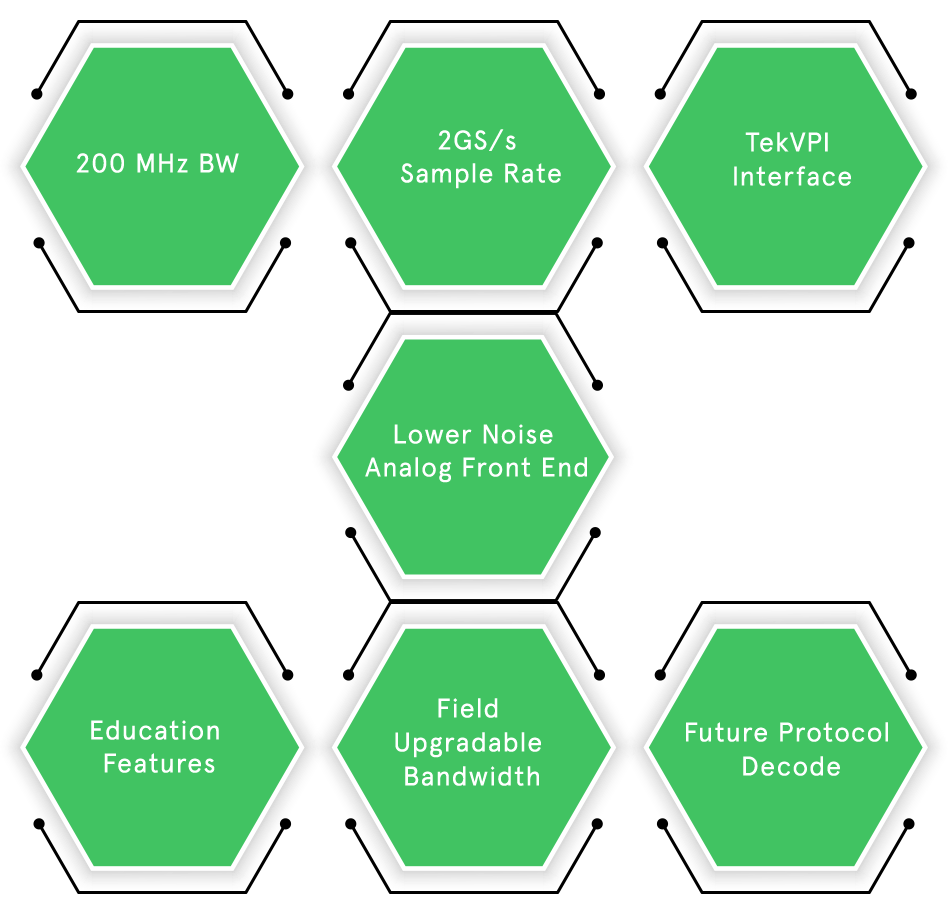

Diagram
ModelsTBS2072B TBS2074BTBS2102B TBS2104BTBS2202B TBS2204B
Bandwidth70 MHz100 MHz200 MHz
Analog Channels2 or 42 or 42 or 4
Waveform update1GS/s (All) 2GS/s (Half) 1GS/s (All) 2GS/s (Half) 1GS/s (All) 2GS/s (Half)
Record Length5M Points5M Points5M Points
Vertical Resolution8 Bit8 Bit8 Bit
Probe InterfaceTekVPI with support for passive BNC probes, Active Voltage, Current and Power probesTekVPI with support for passive BNC probes, Active Voltage, Current and Power probesTekVPI with support for passive BNC probes, Active Voltage, Current and Power probes
TriggerEdge, Pulse Width, RuntEdge, Pulse Width, RuntEdge, Pulse Width, Runt
Analysis32 Automated Measurements, Math, Ref, Cursors, FFT, Search and Mark, Zoom, Autoset32 Automated Measurements, Math, Ref, Cursors, FFT, Search and Mark, Zoom, Autoset32 Automated Measurements, Math, Ref, Cursors, FFT, Search and Mark, Zoom, Autoset
Display Size9in WVGA9in WVGA9in WVGA
I/OUSB Host, USB Device, LAN, Aux Out, WiFi (Optional)USB Host, USB Device, LAN, Aux Out, WiFi (Optional)USB Host, USB Device, LAN, Aux Out, WiFi (Optional)
SecurityKensington LockKensington LockKensington Lock
SoftwareCourseware, TekSmartLab, OpenChoice, TekBench, KickstartCourseware, TekSmartLab, OpenChoice, TekBench, KickstartCourseware, TekSmartLab, OpenChoice, TekBench, Kickstart
Warranty5 Years5 Years5 Years
Buy the Series here
Primerjaj izbrano Primerjaj Dodaj izbrano Dodaj

Prikaz pogodbeno določenih cen trenutno ni na voljo. Prikazane so standardne maloprodajne cene, oddana naročila pa bodo obdelana po pogodbeno določenih cenah.

  Proizvajalčeva št. dela Številka naročila Proizvajalec / opis
Razpolozljivost Cena za
Cena
Količina
TBS2074B
TBS2074B - Digital Oscilloscope, TBS2000B Series, 4 Channel, 70 MHz, 2 GSPS, 5 Mpts

3364864


Nov izdelek
Data Sheet
RoHS

TEKTRONIX

Digital Oscilloscope, TBS2000B Series, 4 Channel, 70 MHz, 2 GSPS, 5 Mpts

DSO, 4CH, 70MHZ, 2GSPS, 5MPTS;

10 Na zalogi

+ Preveri zaloge in dobavne roke

10: dostava v 1–2 dneh iz našega skladišča (UK): 00 uro popoldne (ponovno navite izdelke pred 17:30) od ponedeljka do petka (razen ob državnih praznikih)

Dodatne zaloge na voljo v tednu, ki se začne 27.7.2020

Izdelek z omejitvijo
TBS2104B
TBS2104B - Digital Oscilloscope, TBS2000B Series, 4 Channel, 100 MHz, 2 GSPS, 5 Mpts

3364866


Nov izdelek
Data Sheet
RoHS

TEKTRONIX

Digital Oscilloscope, TBS2000B Series, 4 Channel, 100 MHz, 2 GSPS, 5 Mpts

DSO, 4CH, 100MHZ, 2GSPS, 5MPTS;

20 Na zalogi

+ Preveri zaloge in dobavne roke

20: dostava v 1–2 dneh iz našega skladišča (UK): 00 uro popoldne (ponovno navite izdelke pred 17:30) od ponedeljka do petka (razen ob državnih praznikih)

Dodatne zaloge na voljo v tednu, ki se začne 27.7.2020

Izdelek z omejitvijo
TBS2204B
TBS2204B - Digital Oscilloscope, TBS2000B Series, 4 Channel, 200 MHz, 2 GSPS, 5 Mpts

3364868


Nov izdelek
Data Sheet
RoHS

TEKTRONIX

Digital Oscilloscope, TBS2000B Series, 4 Channel, 200 MHz, 2 GSPS, 5 Mpts

DSO, 4CH, 200MHZ, 2GSPS, 5MPTS;

28 Na zalogi
+ Preveri zaloge in dobavne roke

7: dostava v 1–2 dneh iz našega skladišča (Liege): 00 uro popoldne (ponovno navite izdelke pred 17:30) od ponedeljka do petka (razen ob državnih praznikih)

21: dostava v 1–2 dneh iz našega skladišča (UK): 00 uro popoldne (ponovno navite izdelke pred 17:30) od ponedeljka do petka (razen ob državnih praznikih)

Dodatne zaloge na voljo v tednu, ki se začne 27.7.2020

Izdelek z omejitvijo
TBS2102B
TBS2102B - Digital Oscilloscope, TBS2000B Series, 2 Channel, 100 MHz, 2 GSPS, 5 Mpts

3364865


Nov izdelek
Data Sheet
RoHS

TEKTRONIX

Digital Oscilloscope, TBS2000B Series, 2 Channel, 100 MHz, 2 GSPS, 5 Mpts

DSO, 2CH, 100MHZ, 2GSPS, 5MPTS;

9 Na zalogi

+ Preveri zaloge in dobavne roke

9 na zalogi za dostavo naslednji dan (UK stock): 00 uro popoldne (ponovno navite izdelke pred 17:30) od ponedeljka do petka (razen ob državnih praznikih)

Dodatne zaloge na voljo v tednu, ki se začne 27.7.2020

Izdelek z omejitvijo
TBS2202B
TBS2202B - Digital Oscilloscope, TBS2000B Series, 2 Channel, 200 MHz, 2 GSPS, 5 Mpts

3364867


Nov izdelek
Data Sheet
RoHS

TEKTRONIX

Digital Oscilloscope, TBS2000B Series, 2 Channel, 200 MHz, 2 GSPS, 5 Mpts

DSO, 2CH, 200MHZ, 2GSPS, 5MPTS;

10 Na zalogi

+ Preveri zaloge in dobavne roke

10 na zalogi za dostavo naslednji dan (UK stock): 00 uro popoldne (ponovno navite izdelke pred 17:30) od ponedeljka do petka (razen ob državnih praznikih)

Dodatne zaloge na voljo v tednu, ki se začne 27.7.2020

Izdelek z omejitvijo
TBS2072B
TBS2072B - Digital Oscilloscope, TBS2000B Series, 2 Channel, 70 MHz, 2 GSPS, 5 Mpts

3364863


Nov izdelek
Data Sheet
RoHS

TEKTRONIX

Digital Oscilloscope, TBS2000B Series, 2 Channel, 70 MHz, 2 GSPS, 5 Mpts

DSO, 2CH, 70MHZ, 2GSPS, 5MPTS;

6 Na zalogi

+ Preveri zaloge in dobavne roke

6 na zalogi za dostavo naslednji dan (UK stock): 00 uro popoldne (ponovno navite izdelke pred 17:30) od ponedeljka do petka (razen ob državnih praznikih)

Dodatne zaloge na voljo v tednu, ki se začne 27.7.2020

Izdelek z omejitvijo
