FGG.1B.305.CLAD62Z

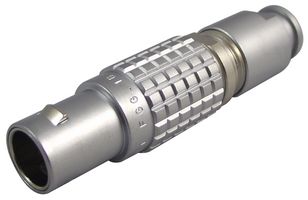

The FGG.1B.305.CLAD62Z is a 5-way Circular Connector, 1B series, straight plug with cable collet and nut for fitting a bend relief. Single key, male (plug) contacts and female (socket) contacts. Push-pull self-latching system with five solder contacts. Chrome-plated brass shell and collet nut, nickel plated brass latch sleeve and mid pieces. The modular design of the 0B series connector offers a solution for most applications. The push pull latching mechanism provides a secure connection whilst the density of the contacts provides for considerable panel space savings. Multi key options prevent cross mating of similar connectors within a panel. The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality.

• 9A Current rating
• PEEK insulator
• G Key standard
• IP50 Protection rating
• 5000 Maximum matings
• 4.8mΩ Maximum resistance
• 0.9mm Contact diameter
• 360° Screening for full EMC shielding
• 5 Low voltage insert configuration

Področja uporabe

Industrial, Automotive, Communications & Networking, Medical, Test & Measurement, Aerospace, Defence, Military
